Standard Waagenanbindung WAAGE-RICELAKE-920I
Rice Lake 920i
Rice Lake 920i
![Rice Lake 920i Rice Lake 920i](/zbus/img/product/waage-ricelake-920i.png)
Spezifikation
- LCD Display 320x240 pixel
- 16 x 350 Ohm Wägezellen
- 4 x serieller Port RS232, 20mA, RS485 (2-wire)
- opt. Ethernet-Karte (Lantronix UDS-10 Cobox)
- Interface Mode : 4C (RS232,8N1)
- Connect Mode : C4 (Manual Connection,Accept incoming connection, no response)
- Port : 10001
- DisConnTime (Inactivity timeout) : 00:15 Sekunden
Konfiguration
![Rice Lake 920i Config Rice Lake 920i Config](/zbus/img/product/ricelake-920i-config.png)
Bei Ethernet-Karte: End-of-line delay auf 1 x 0,1 Sekunden
![Rice Lake 920i EOLDLY Rice Lake 920i EOLDLY](/zbus/img/product/ricelake-920i-eoldly.png)
Schnittstellen
- Port 1 (J11): RS232-Schnittstelle
- 1: GND
- 2: RxD
- 3: TxD
- Port 3 (J9): RS232-Schnittstelle /
20mA bzw. Ethernet-Karte
- 1: GND / -20mA
- 2: RxD
- 3: TxD
- 4: +20mA
- Port 4 (J10): RS232-Schnittstelle /
20mA /
RS485-Schnittstelle
- 1: GND / -20mA
- 2: RxD
- 3: TxD
- 4: +20mA
- 5: RS-485 A
- 6: RS-485 B
![Rice Lake 920i Ports 1/3 Rice Lake 920i Ports 1/3](/zbus/img/product/ricelake-920i-ports.png)
![Rice Lake 920i PTR AK130 BL Rice Lake 920i PTR AK130 BL](/zbus/img/product/ricelake-920i-plug.png)

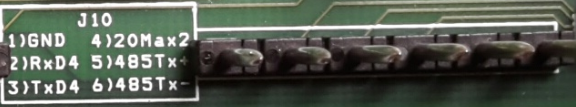

![Rice Lake 920i Port 4 Rice Lake 920i Port 4](/zbus/img/product/ricelake-920i-port4.png)
Waagenanbindung
